RTL8000 Active Imaging 3-in-1 & 2-in-1 Flush Mount Kit

The RTL8000 is CNC Machined out of Black (UV Proof) HDPE plastic and is the same material our very popular transducer boards are created from! The mount comes supplied with both "Hull" and "Transducer" mounting screws  and the only thing needing to be supplied by the installer is a high quality Pure Silicone ("Marine Grade" or 100%).   An installer can use 3M 5200 or similar but Pure silicone has much better sealing properties and adheres perfectly to the
HDPE for a life long leak free installation!

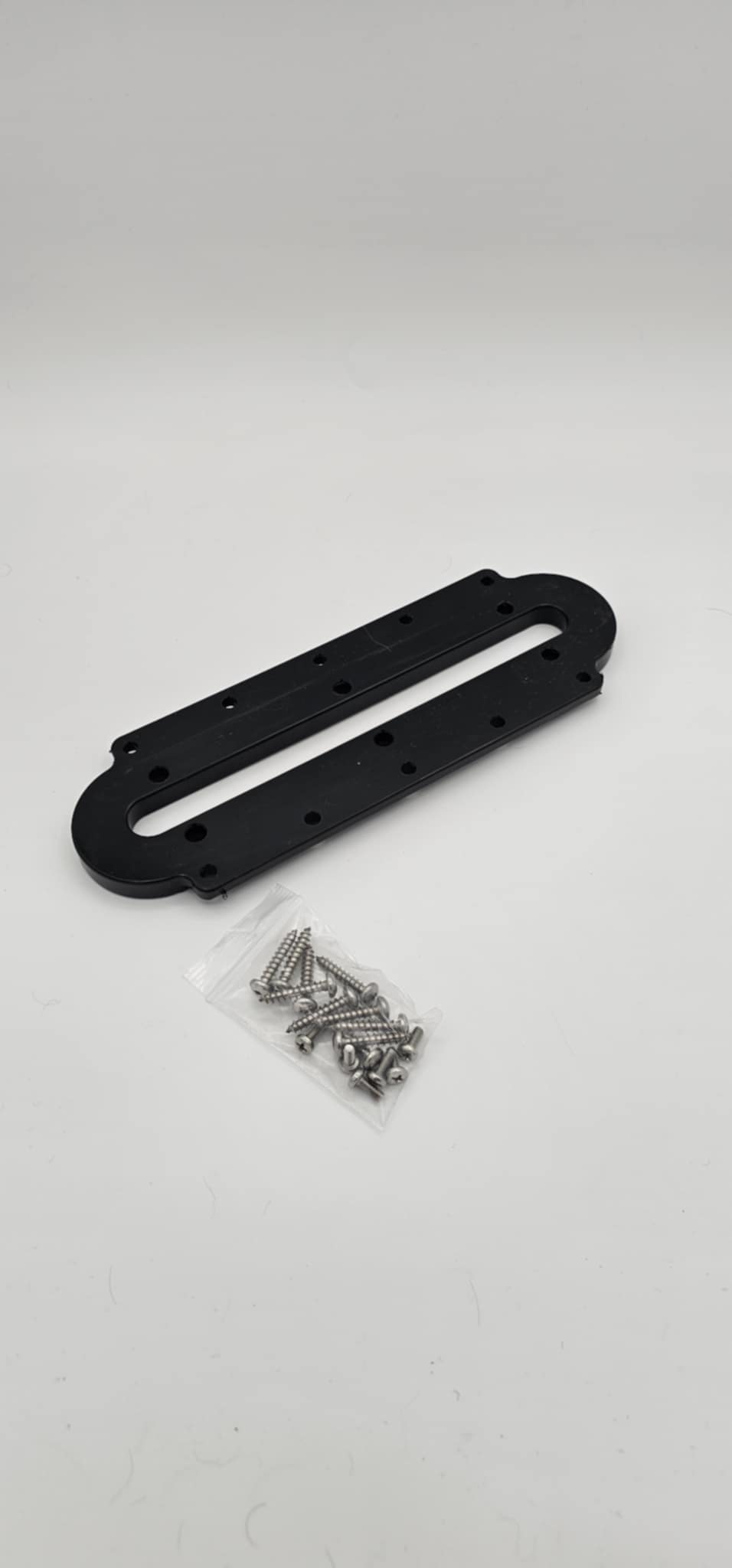

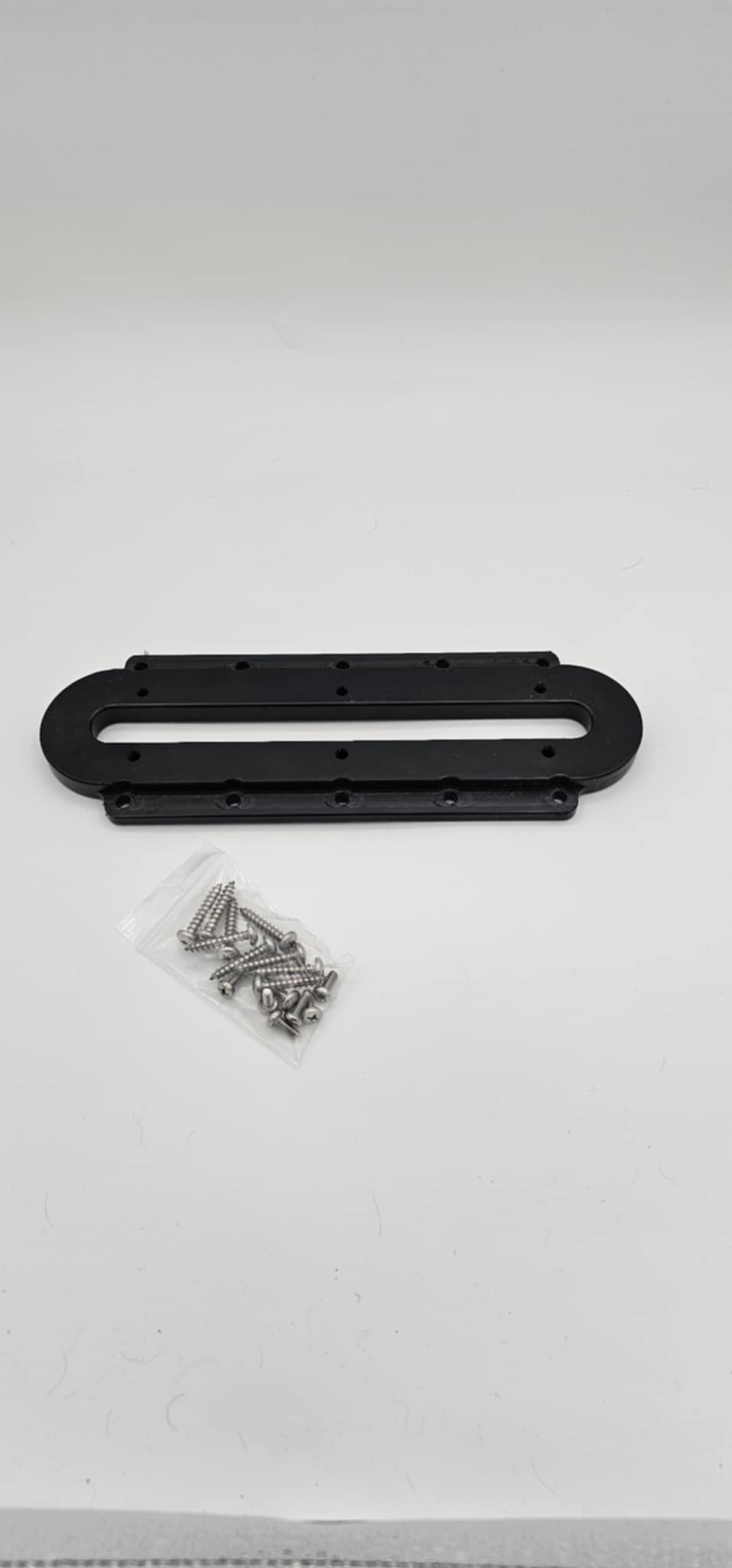

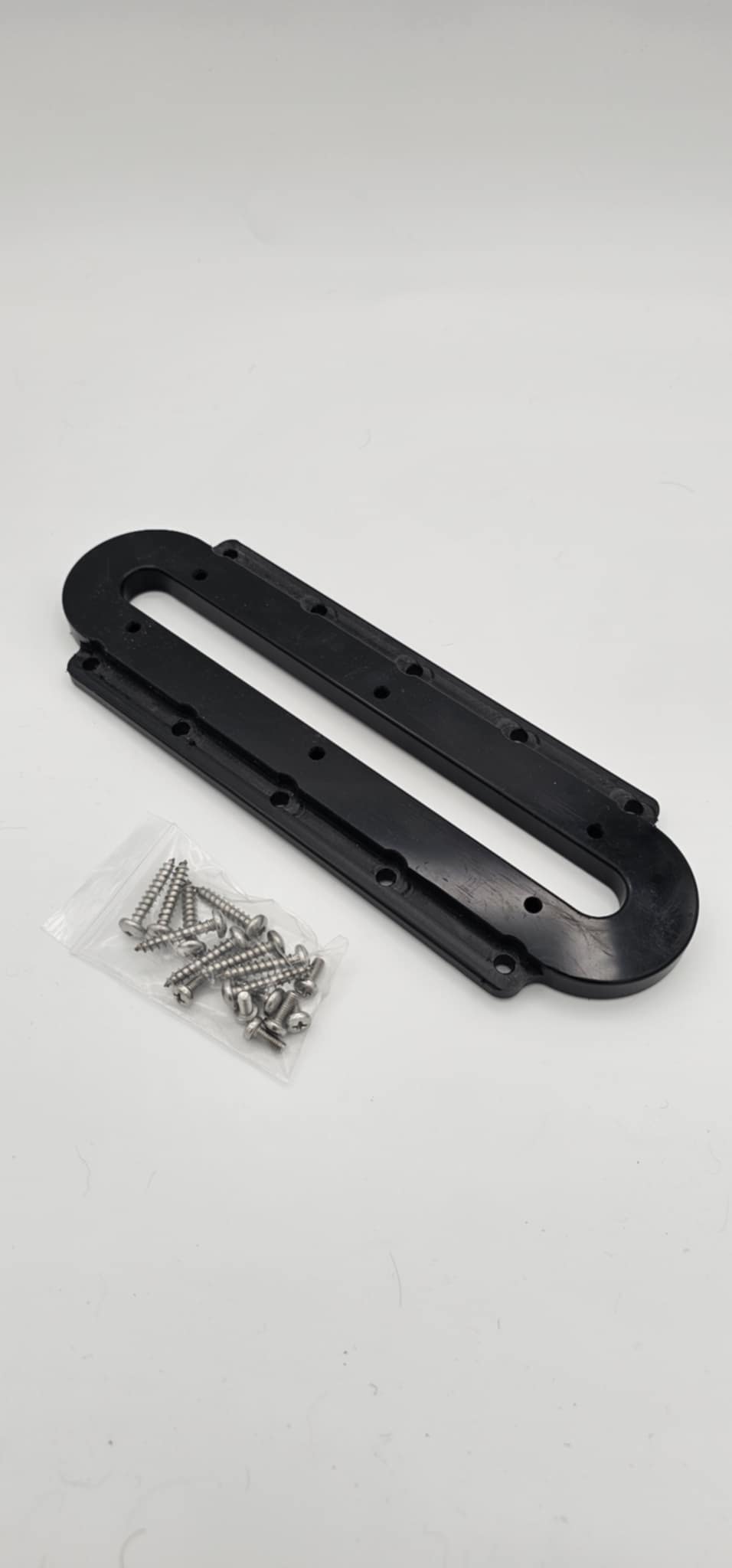

CNC Machined HDPE UV-Proof plastic with transducer screws and mounting screws included.

10.5"L x 3.5"W x 1"

10pcs-#10x1" Stainless Screws

6pcs -Stainless Transducer Mounting Screws

RyTek Marine recommends the use of 100% Silicone for all sealing surfaces when used with Fiberglass or Aluminum with our HDPE Transducer Boards and Flush Mounts.

Clean all surfaces with acetone before installation. Pre-drill holes with a "twist" drill bit slightly smaller than the screw thread diameter. (Please wear safety glasses). Test fit screw prior to installing mount by hand tightening with a screw driver. If the fit is to tight, back out and bore out the hole slightly and test fit again. Fill all thru holes with silicone prior to installing
screws. Hand tighten screws only and do not use a drill or impact driver....Stainless steel screws are brittle

Detailed installation instruction will be available here soon. Stay Tuned!!!
