RTG8056 Garmin GT56 Flush Mount Kit

Our newly designed RTG8056 Flush Mount has a 2.875" wide by 1.8125" spacing (the RTG5056 has 4 holes per side for hull screws)

The RTG8054 is CNC Machined out of Black (UV Proof) HDPE plastic and is the same material our very popular transducer boards are created from!   The mount comes supplied with both "Hull" and "Transducer" mounting screws  and the only thing needing to be supplied by the installer is a high quality Pure Silicone ("Marine Grade" or 100%).   An installer can use 3M5200 or similar but Pure silicone has much better sealing properties and adheres perfectly to the HDPE for a life long leak free installation!

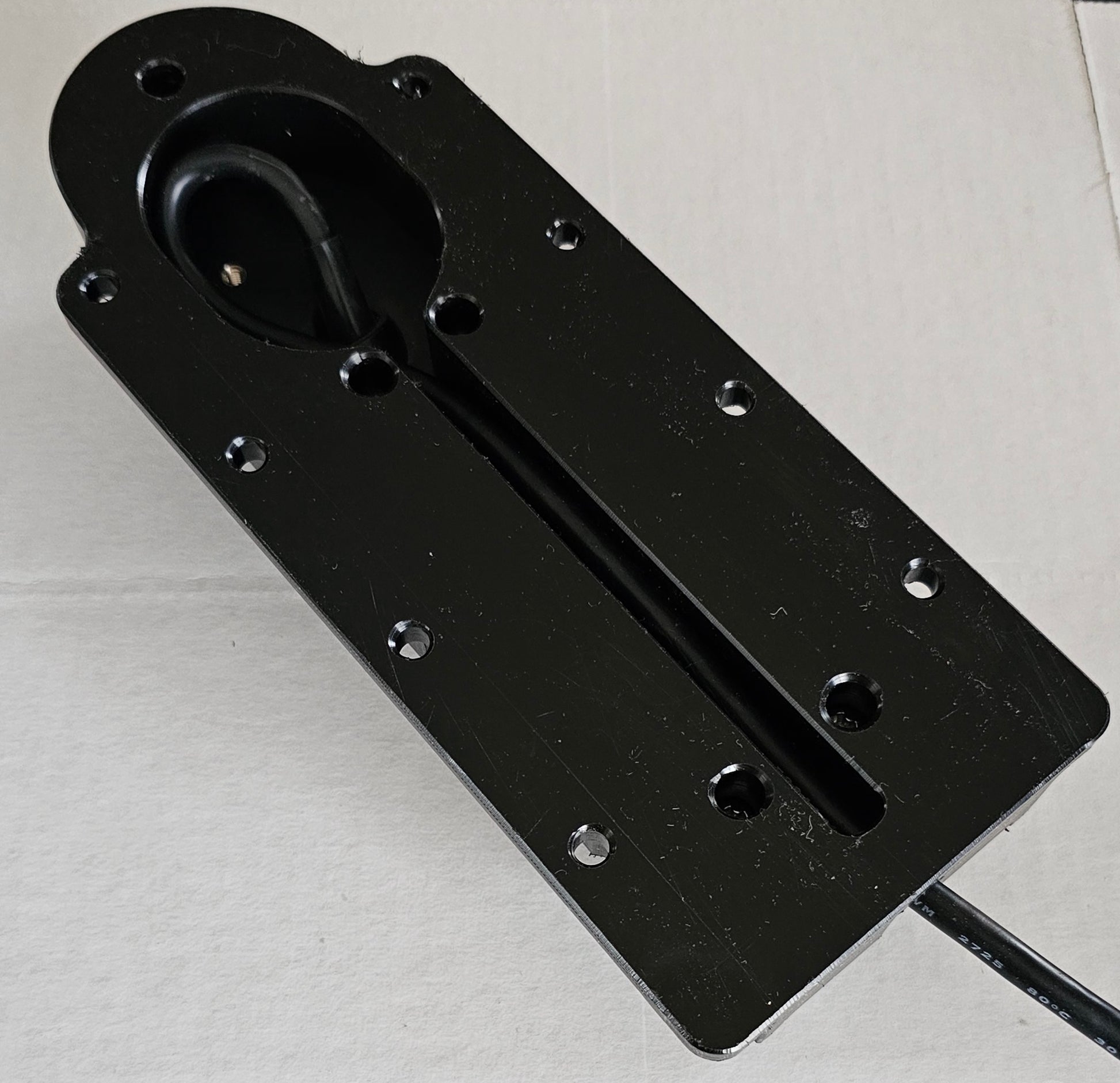

The RTG8054 also allows the transducer cable to sit perfectly within the mount, not allowing it to kink or bend to sharply and then nicely exit the rear of the mount for perfect cable management without the risk of cutting or chaffing!

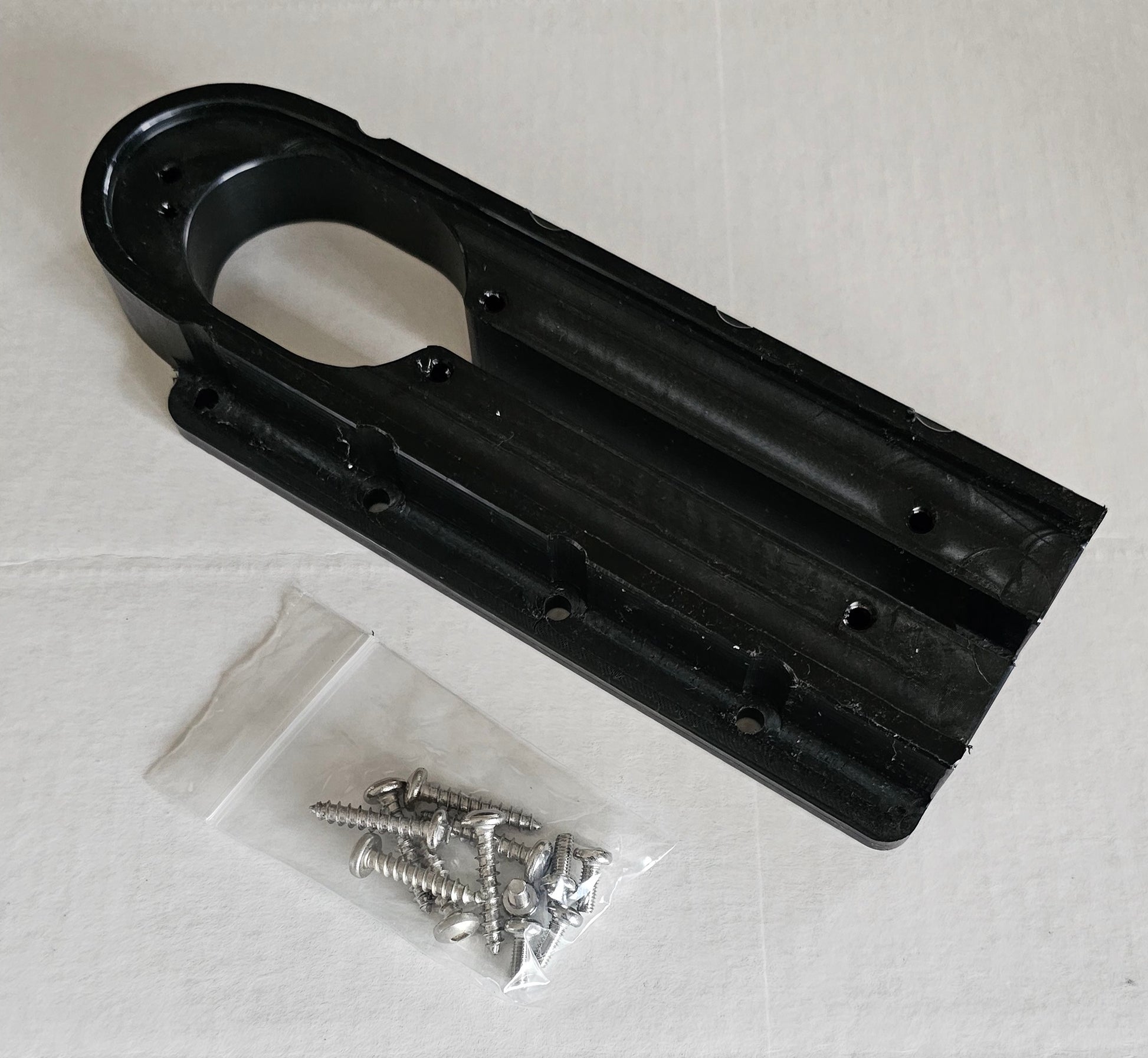

Our Flush Mount Transducer Mounts are made of Solid 1" HDPE UV Proof Plastic. All mounts are supplied with #10x1" Stainless Steel screws for fastening to the hull and Stainless Steel machine screws for attaching your transducer to the mount.

9" Long

3.5" Wide

1" Tall

RyTek Marine recommends the use of 100% Silicone for all sealing surfaces when used with Fiberglass or Aluminum with our HDPE Transducer Boards and Flush Mounts.

Clean all surfaces with acetone before installation. Pre-drill holes with a "twist" drill bit slightly smaller than the screw thread diameter. (Please wear safety glasses). Test fit screw prior to installing mount by hand tightening with a screw driver. If the fit is to tight, back out and bore out the hole slightly and test fit again. Fill all thru holes with silicone prior to installing
screws. Hand tighten screws only and do not use a drill or impact driver....Stainless steel screws are brittle

Detailed installation instruction will be available here soon. Stay Tuned!!!
