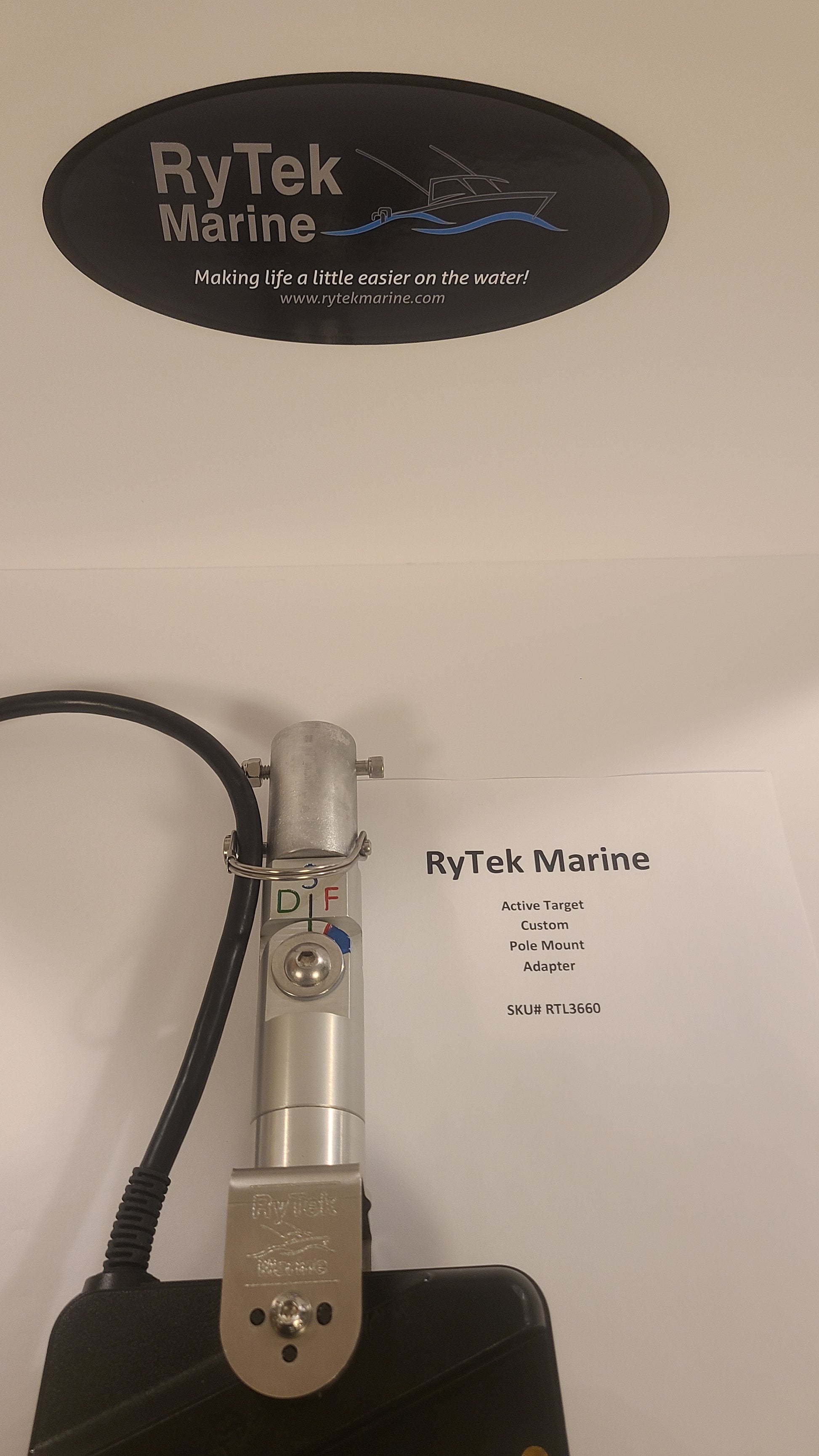

These ActiveTarget Pole mount adapters allow the user to quickly attach our RTL3600 ActiveTarget or RTG3600 Multi-View Transducer Pole Mounts to the transducer pole of their choice!  Available in the custom sizes below, the user needs to measure the Outside Diameter of their transducer pole and choose what size works best for you!

Our 3600 transducer mounts have a "Stub" size of .855 inches.  If your pole has an ID (Inside Diameter) of .8600 to .8650 then NO adapter will be required and you would need to just drill a hole thru your pole ( RTM3630 drilling jigs are available in drilling this hole)

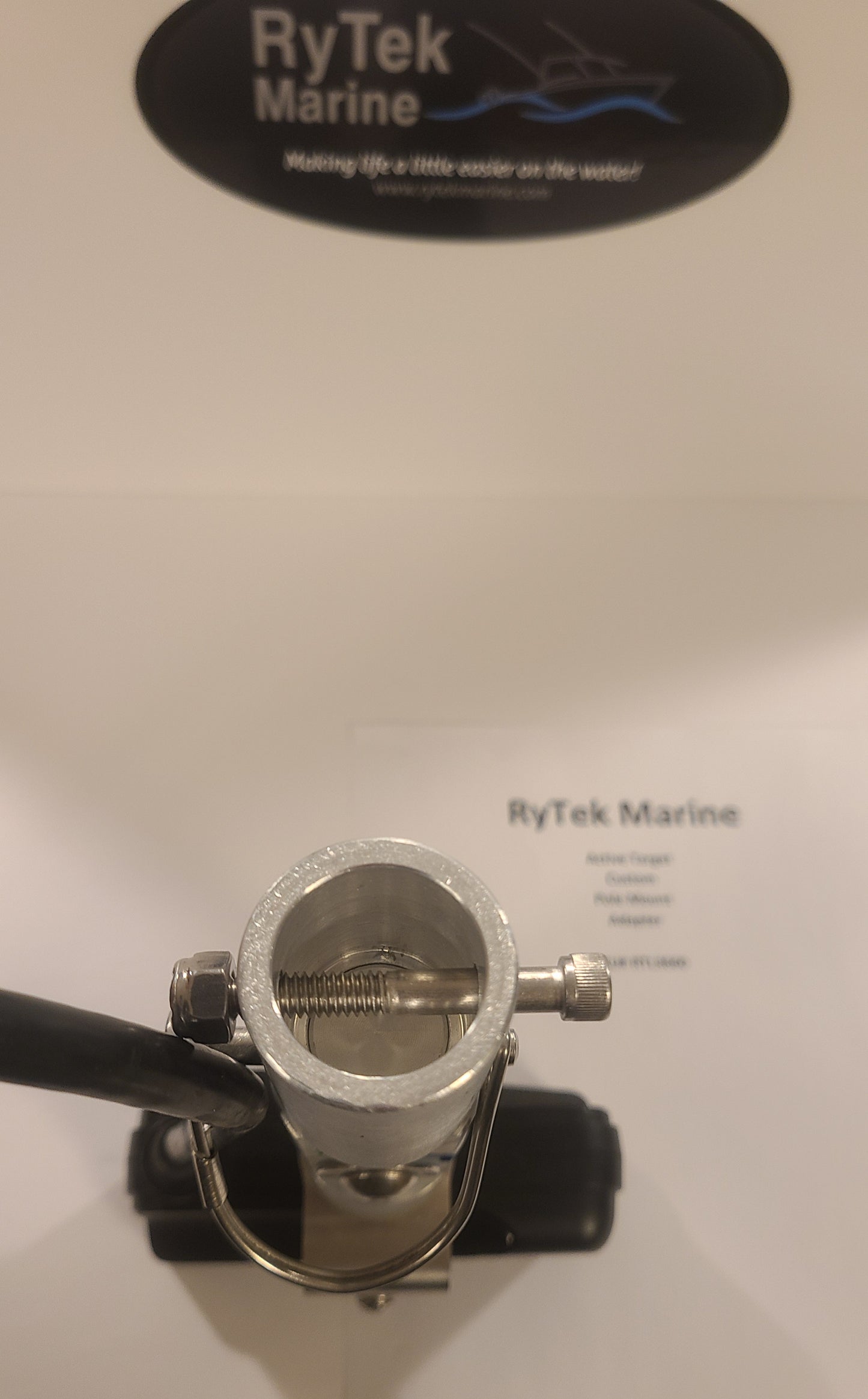

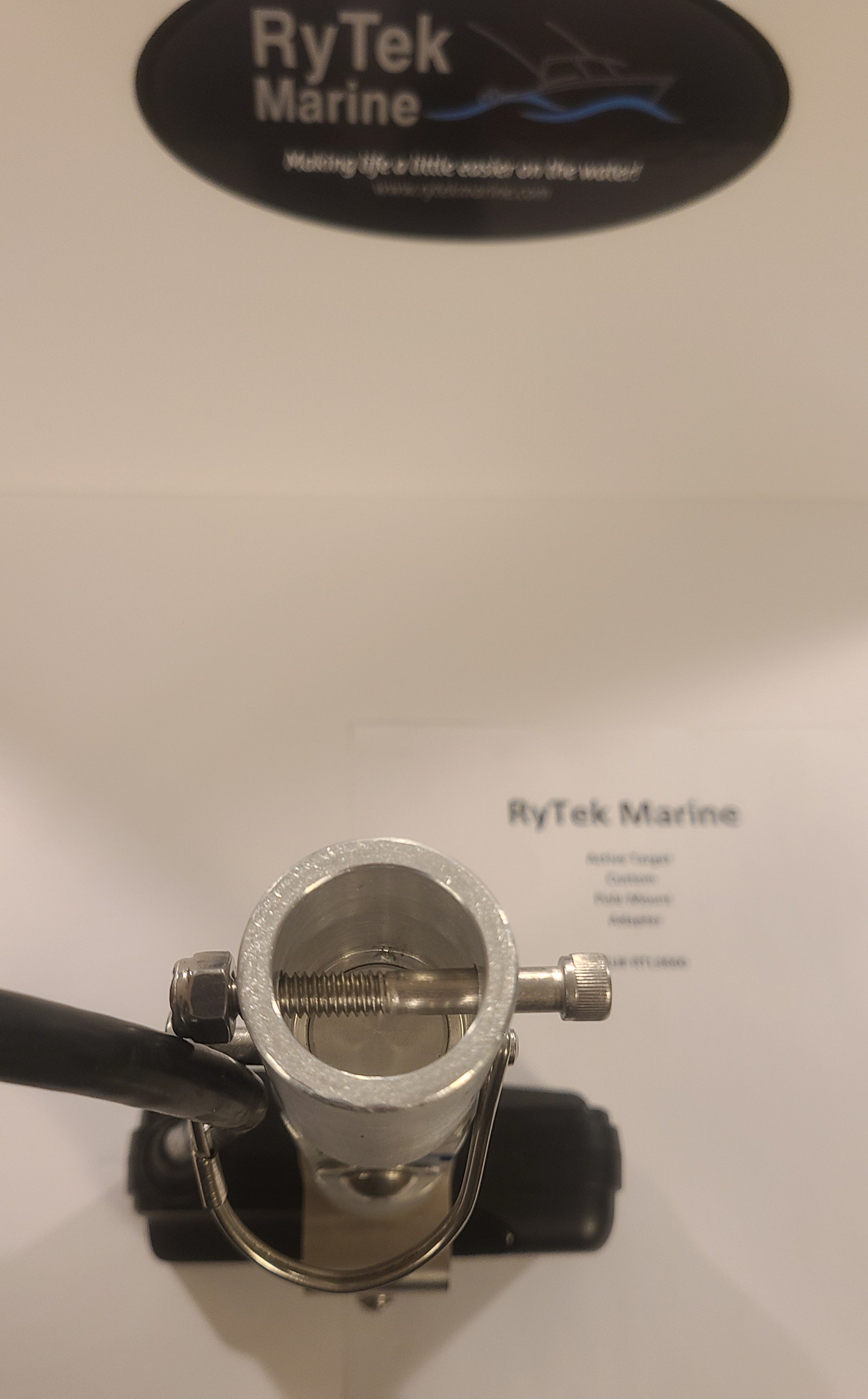

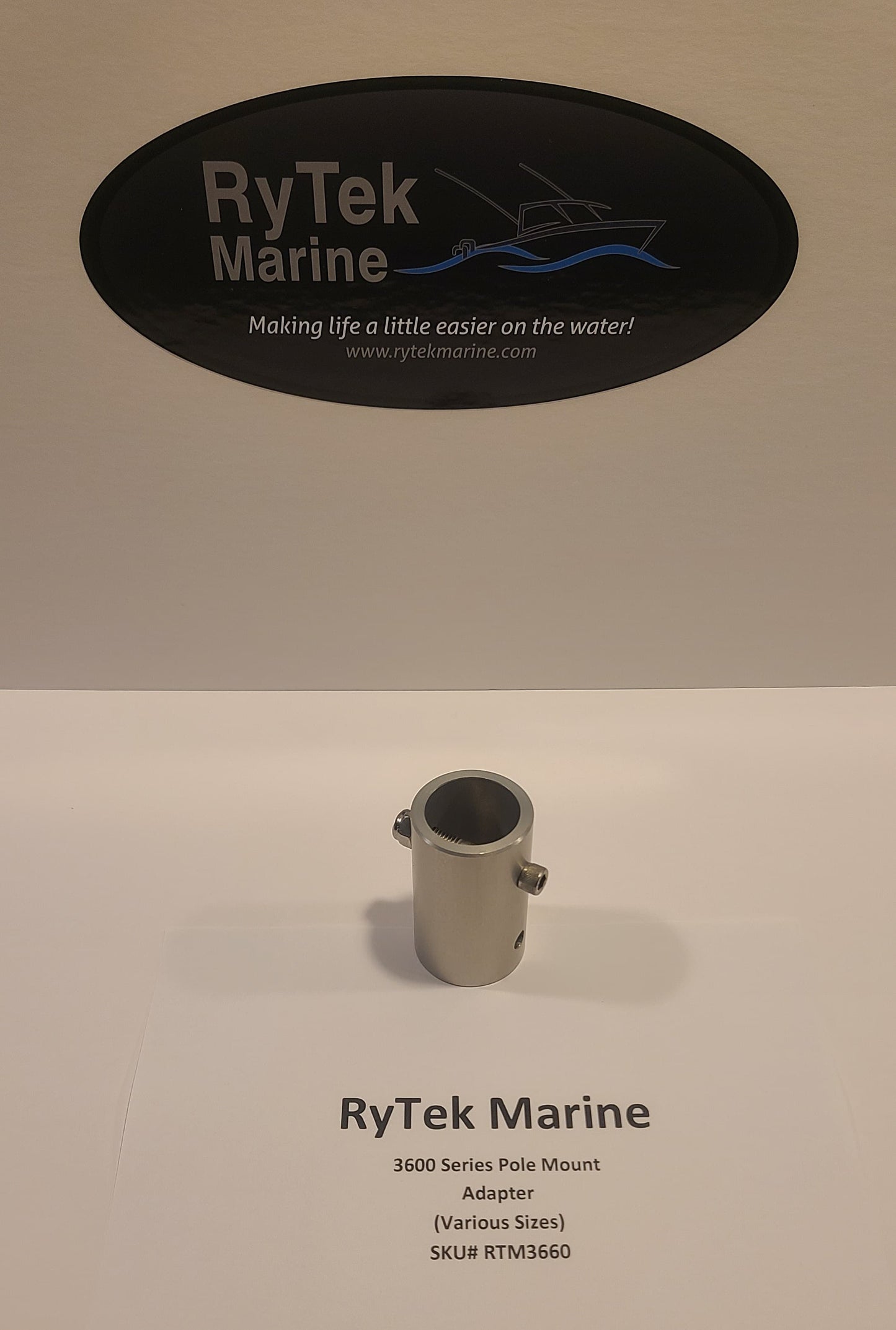

The adapter is machined out of 6061 Aluminum and has a bottom hole machined for the RTL3600 including the clevis pin horizontal hole!  The upper hole is machined to the diameter listed below +.020" to allow for a slip fit.  The adapter has a pre drilled 1/4" horizontal hole for securely mounting your shaft to the adapter with the supplied Stainless Steel Bolt/Lock Nut.

*** Beside the Adapter Dimensions in the drop down tab below are the Manufactures that certain size adapter works with...Do not rely 100% on this but measure your pole Outside Diameter to confirm this dimension to confirm you are ordering the correct one!****

The Adapters are an alternative to RTL3650 Pole Mount sleeves and do not require the additional drilling jig in order to drill your pole mount shaft.

Installation is easy with no need for the use of a drilling jig...simply slide your transducer shaft into the adapter, and drill thru your transducer pole in the pre-drilled hole locations!  For a permanent fit, the installer can also use Epoxy or JB-Weld or similar adhesive to make for a 100% solid installation.

Currently available in the sizes below with more custom sizes available upon request.

Please check out our YouTube video for our RTL3660 installation video

https://youtu.be/NttRu9aNl0s
