RTL-HD8000 Active Imaging HD 3-in-1 & 2-in-1 Flush Mount Kit

Name: RTL-HD8000 Active Imaging HD 3-in-1 & 2-in-1 Flush Mount Kit
Brand: RyTek Marine
SKU: RTL-HD8000
Price: 125.0 USD
Availability: InStock
Rating: 4.43 (7 reviews)

$125.00 USD

$125.00 USD ~~$125.00 USD~~

Shipping calculated at checkout.

Shop safely

Secure your shopping experience with various safe and trusted payment methods.

Shop safely with us

Our RTL-HD8000 is our new "Flush Mount" kit for the Lowrance Active Imaging HD 3in1 & 2in1.

THIS BRACKET IS FOR THE 3in1HD TRANSDUCER THAT COMES WITH THE NEW LOWRANCE PRO GRAPHS.

This mount is designed and created to use the existing Lowrance bolt pattern of the prior flush mount brackets prior to the new "HD" transducer. This allows the boat owner to use the existing holes drilled in the bottom of their hull and not require any new holes being drilled!

RTL-HD8000

Features

The RTL-HD8000 is CNC Machined out of Black (UV Proof) HDPE plastic and is the same material our very popular transducer boards are created from! The mount comes supplied with both "Hull" and "Transducer" mounting screws and the only thing needing to be supplied by the installer is a high quality Pure Silicone ("Marine Grade" or 100%). An installer can use 3M 5200 or similar but Pure silicone has much better sealing properties and adheres perfectly to the
HDPE for a life long leak free installation!

Materials

CNC Machined HDPE UV-Proof plastic with transducer screws and mounting screws included.

Dimensions

10.5"L x 3.5"W x 1"

10pcs-#10x1" Stainless Screws

6pcs -Stainless Transducer Mounting Screws

Installation Instructions

RyTek Marine recommends the use of 100% Silicone for all sealing surfaces when used with Fiberglass or Aluminum with our HDPE Transducer Boards and Flush Mounts.

Clean all surfaces with acetone before installation. Pre-drill holes with a "twist" drill bit slightly smaller than the screw thread diameter. (Please wear safety glasses). Test fit screw prior to installing mount by hand tightening with a screw driver. If the fit is to tight, back out and bore out the hole slightly and test fit again. Fill all thru holes with silicone prior to installing
screws. Hand tighten screws only and do not use a drill or impact driver....Stainless steel screws are brittle

Detailed installation instruction will be available here soon. Stay Tuned!!!

RTL-HD8000 Active Imaging HD 3-in-1 & 2-in-1 Flush Mount Kit

$125.00 USD

Any questions?

Address frequently asked questions about this product to minimize any concerns or uncertainties that might deter a customer from making a purchase.

Search

Does it come with a warranty?

YES! Lifetime Warrantee for any of the machined aluminum or stainless steel parts!!! Hardware and Decals excluded as they are "wear" items. Hardware re-build and Decal kits are available on the accessory page.

How fast is shipping?

If available to purchase (shows a price) the item is in stock and will ship within 1-2 business days unless noted!

What's the returns policy?

Our Return Policy is available HERE

Lowrance HD transducer FlushMount

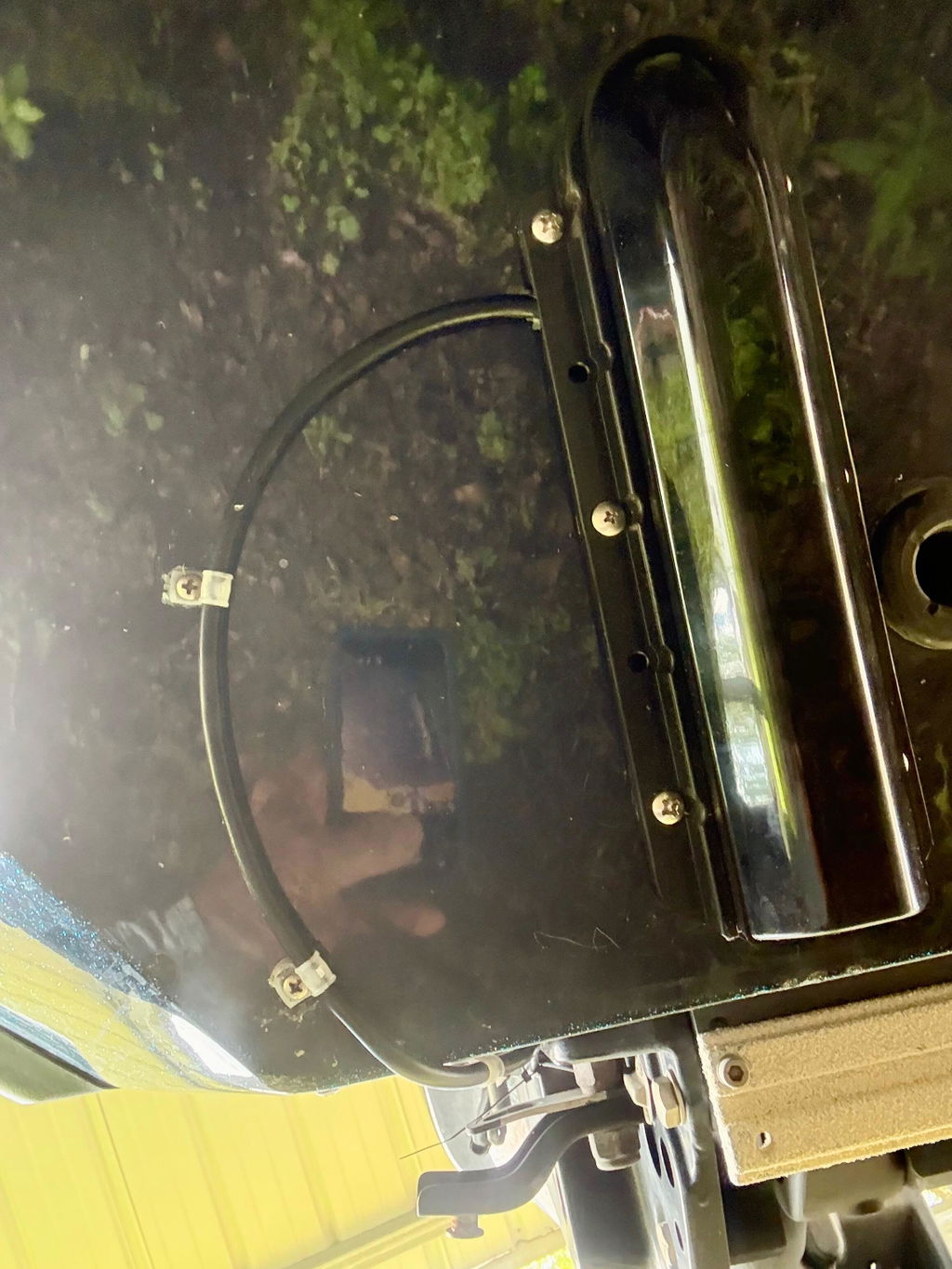

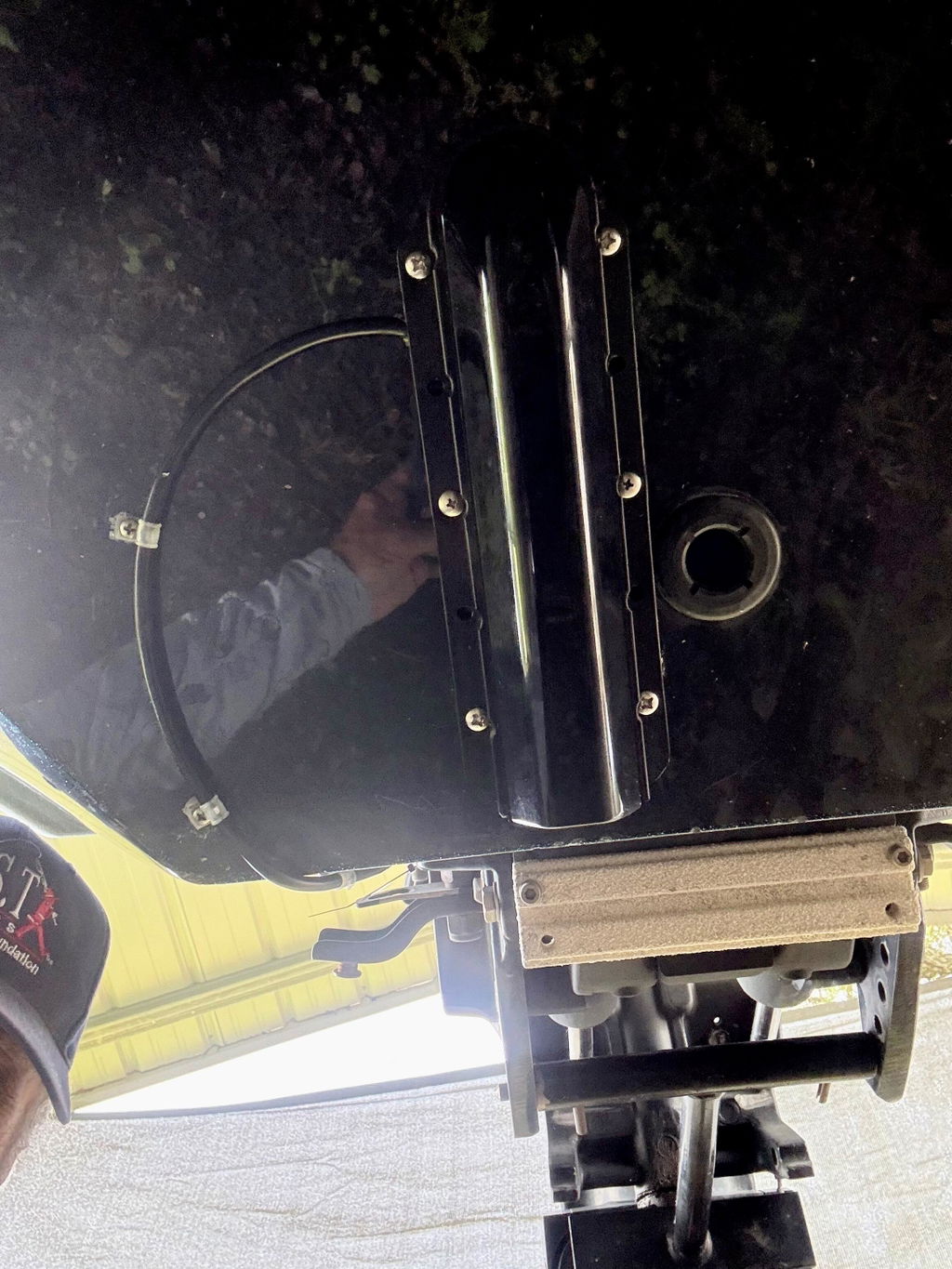

Easy to install the new Lowrance 3-1 HD ducer on bottom area of Ranger Boat. Great Product.

High Quality

This mount is very nice! Had problems with USPS holding the delivery up, but Ryan stayed on top of it all the way until I received it! He was even going to send a second one out, but the first one started moving and I got it the next day.
Nice quality and a very nice person to deal with!!
Thanks Ryan

Looks very well made, can’t wait to get it installed.

Haven't received it yet to give a review

Can't give a review on something I haven't received yet

Amazing

This transducer mount is amazing. It's complete and takes all of the guesswork out of mounting. I have starboard already mounted on the step, and attached this mount to that. It includes mounting hardware as well. Couldn't ask fo a better mount for the HD transducer.
